Explanation of the features of the Mandelbrot set

1 Introduction to the Mandelbrot Set

Before thinking about what different parts of the Mandelbrot set may mean, what exactly is the Mandelbrot set? The most concise definition is that which Wikipedia gives:

“The Mandelbrot set is a two-dimensional set that is defined in the complex plane as the complex numbers \(c\) for which the function \(f_c(z) = z^2+ c\) does not diverge to infinity when iterated starting at \(z=0\)” (Wikipedia contributors, n.d.)

But what does this exactly mean?

This means that if you take a complex number \(c\) of the form \(a+bi\) and let \(z_0=0\), and define \(z_{n+1}=z_{n}^2+c\) and repeatedly iterate through this iterative formula, you have two possible options - it “blows up” to infinity, or it remains stable. Here is an example (where \(c\) is a real number) when \(c=-1\)

\[ \begin{aligned} z_1&=0^2-1&&=-1 \\ z_2&=-1^2-1 &&= 0\\ z_3 &&&=-1 \end{aligned} \]

Here you see that when \(c=-1\), then the sequence bounces between -1 and 0. It is stable, and hence in the Mandelbrot set.

Let’s look at a second example, when \(c=1\)

\[ \begin{aligned} z_1 &= 0^2+1 &&= 1 \\ z_2 &= 1^2+1 &&= 2 \\ z_3 &= 2^2+1 &&= 5 \\ z_4 &= 5^2+1 &&= 26 \\ \end{aligned} \]

Therefore, we see that using \(c=1\) quickly produces larger numbers till infinity, and can conclude that \(c=1\) is outside the Mandelbrot set

Let’s take a look at a 3rd example where \(c\) is a complex number such as \(c=1+i\)

\[ \begin{aligned} z_1 &= 0^2+1+i &&=1+i \\ z_2 &=(1+i)^2 +1+i &&=1+3i \\ z_3 &= (1+3i)^2 + 1+i&&=-7+7i \\ z_4 &= (-7+7i)^2 + 1+i &&= 1-97i \\ \end{aligned} \]

Looking at the magnitudes¹ of the complex numbers, we see that they diverge to infinity again, concluding that \(c=1+i\) is again outside the Mandelbrot set.

For what this would look like on the complex plane, where points in the Mandelbrot set are in black, and points outside the Mandelbrot set are in white, see Figure 1

import numpy as np
import matplotlib.pyplot as plt

def complex_matrix(xmin, xmax, ymin, ymax, pixel_per_unit_width, pixels_per_unit_height):
    re = np.linspace(xmin, xmax, int((xmax-xmin)*pixel_per_unit_width))
    im = np.linspace(ymin, ymax, int((ymax-ymin)*pixels_per_unit_height))
    return re[np.newaxis, :] + 1j * im[:, np.newaxis]
def mandelbrot(C, max_iter):
  Z = np.zeros(C.shape, dtype=complex)
  mask = np.ones(C.shape, dtype=bool)
  for i in range(max_iter):
      Z = Z*Z + C
      mask &= np.abs(Z) <= 2

  return mask

C = complex_matrix(-2, 1, -1.5, 1.5, 300, 300)
mandelbrot_set = mandelbrot(C, 50)
plt.xlabel('Real')
plt.ylabel('Imaginary')
plt.imshow(mandelbrot_set, extent=[-2,1,-1.5,1.5], cmap='binary')

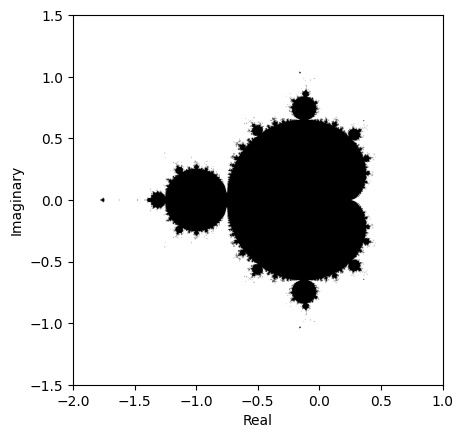

Figure 1: Mandelbrot set on the complex plane

Here we see the most famous fractal in mathematics - the Mandelbrot set, which we found by a simple mathematical rule. The axes on Figure 1 denote the real and imaginary parts of the complex number \(c=a+bi\) where \(a\) is the real value on the x axis and \(b\) is the imaginary value on the y axis .

2 The Bulbs

2.1 The Bifurcation of the Quadratic Map

The Bifurcation diagram of the Quadratic Map and the Mandelbrot set are linked and correspond to each other and the Quadratic Map is defined as: \[x_{n+1}=x_n^2+c\]

But what is a bifurcation diagram of the Quadratic Map?

It shows how the long term behaviour of a system changes as a parameter is adjusted in the quadratic map.

Let’s take a value for \(c\) like \(c=0.2\) and look at its long term behaviour.

\[ \begin{aligned} x_0&=0 \\ x_1&=0^2+0.2 &&=0.2 \\ x_2&=0.2^2+0.2 &&=0.24 \\ x_3&=0.24^2+0.2 &&=0.2576 \\ x_4&=0.2576^2+0.2 &&=0.2664 \\ x_5&=0.2664^2+0.2 &&=0.2710 \\ \end{aligned} \]

Here, we see the values converging to a single point at approximately 0.2764 which is called a fixed point. Taking a different value for \(c\) like \(c=0.5\) we see a different behaviour: \[ \begin{aligned} x_0&=0 \\ x_1&=0^2+0.5 &&=0.5 \\ x_2&=0.5^2+0.5 &&=0.75 \\ x_3&=0.75^2+0.5 &&=1.0625 \\ x_4&=1.0625^2+0.5 &&=1.6289 \\ x_5&=1.6289^2+0.5 &&=3.1555 \\ \end{aligned} \]

Here, we see the values diverging to infinity, indicating that for \(c=0.5\), the system does not settle into a fixed point.

We can also do this for negative numbers like \(c=-1\): \[ \begin{aligned} x_0&=0 \\ x_1&=0^2-1 &&=-1 \\ x_2&=-1^2-1 &&=0 \\ x_3&=0^2-1 &&=-1 \\ \end{aligned} \]

We can clearly see that the values cycle between -1 and 0, showcasing the behaviour of a period-2 cycle.

2.2 Bifurcation Diagram

The values of \(c\) that do not escape to infinity are exactly between -2 and 0.25. Plotting the long term behaviour of the quadratic map gives us the bifurcation diagram, which is shown in Figure 2.

P = np.linspace(-2, 1, 600)
X = []
Y = []

for u in P:
    point = 0 + u
    for i in range(600):
        point = point**2 + u
        if abs(point) > 2:
            break
    else:

        points = []
        for i in range(100):
            point = point**2 + u
            new_point = round(point, 3)
            if new_point not in points:
                points.append(new_point)

        X.append([u] * len(points))
        Y.append(points)
X= [item for sublist in X for item in sublist]
Y= [item for sublist in Y for item in sublist]
plt.scatter(X, Y, s=0.1, color='red')
plt.show()

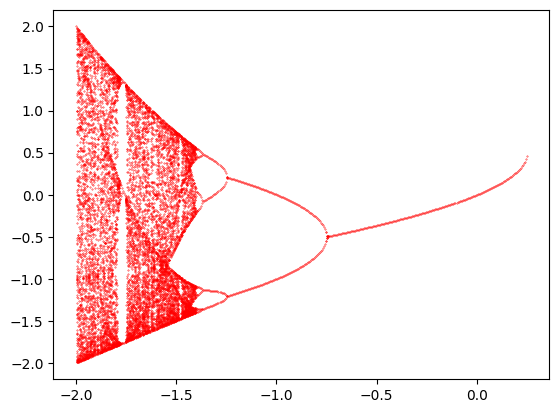

Figure 2: Bifurcation diagram of the quadratic map

The y values represent the long term values of \(x_n\) for each corresponding \(c\) value on the x axis. For example, at \(c=-1\), we see two points at y=-1 and y=0, representing the period-2 cycle we observed earlier. Similarly, at \(c=0.2\), we see a single point around y=0.2764, representing the fixed point we calculated.

2.3 Comparison with the Mandelbrot set

Now, if we overlay the bifurcation diagram on top of the Mandelbrot set as shown in Figure 3, we can see that the bulbs of the Mandelbrot set correspond to the stable regions in the bifurcation diagram.

plt.imshow(mandelbrot_set, extent=[-2,1,-1.5,1.5], cmap='binary')
plt.scatter(X, Y, s=0.01, alpha=0.5, color='red')
plt.show()

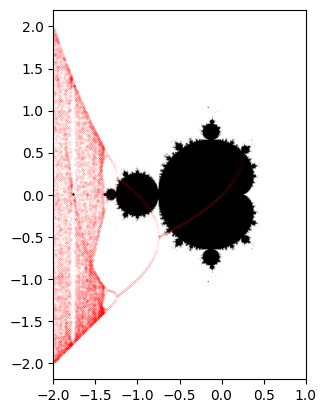

Figure 3: Mandelbrot set with bifurcation diagram overlay

2.4 How do they correspond?

The individual bulbs in the mandelbrot set correspond to regions of stability. They also correspond to parameters of \(c\) where a specific period cycle is attracting. For example, the largest bulb at the centre of the set corresponds to fixed points, and the smaller bulbs to the left correspond to period-2, period-4 cycles, and so on. Also, you can see the Feigenbaum point at \(c \approx -1.401155\) where the period-doubling bifurcations accumulate, and chaos begins. This is where the orbit becomes chaotic, and there are no stable cycles, except for some periodic windows like around \(c \approx -1.75\), where you can see a period-3 cycle emerging. These period windows reveal some smaller minibrots in the Mandelbrot set, and you can see that there are a lot of them as you zoom in closer to the boundary of the Mandelbrot set.

2.5 Visualisation of the period cycles

mutable x_centre = -0.5;
mutable y_centre = 0.0;
mutable centre_x_pixel = 0;
mutable centre_y_pixel = 0;

viewof mandelbrotPlot = {
  const xmin = -2, xmax = 1;
  const ymin = -1.5, ymax = 1.5;
  const pixelPerUnitWidth = 250;
  const pixelPerUnitHeight = 250;
  const maxIter = 50;

  const width = Math.floor((xmax - xmin) * pixelPerUnitWidth);
  const height = Math.floor((ymax - ymin) * pixelPerUnitHeight);

  const canvas = DOM.canvas(width, height);
  const ctx = canvas.getContext("2d");
  const image = ctx.createImageData(width, height);

  canvas.addEventListener("click", (event) => {
    const rect = canvas.getBoundingClientRect();
    const x = event.clientX - rect.left;
    const y = event.clientY - rect.top;

    const cr = xmin + (x / width) * (xmax - xmin);
    const ci = -ymin - (y / height) * (ymax - ymin);
    mutable x_centre = cr;
    mutable y_centre = ci;
    mutable centre_x_pixel = x;
    mutable centre_y_pixel = y;
  });

  // compute mandelbrot
  for (let y = 0; y < height; y++) {
    const ci = ymin + (y / height) * (ymax - ymin);

    for (let x = 0; x < width; x++) {
      const cr = xmin + (x / width) * (xmax - xmin);

      let zr = 0, zi = 0;
      let iter = 0;

      while (zr*zr + zi*zi <= 4 && iter < maxIter) {
        const zrNew = zr*zr - zi*zi + cr;
        zi = 2 * zr * zi + ci;
        zr = zrNew;
        iter++;
      }

      const idx = (y * width + x) * 4;
      const v = iter === maxIter ? 0 : 255;

      image.data[idx] = v;
      image.data[idx + 1] = v;
      image.data[idx + 2] = v;
      image.data[idx + 3] = 255;
    }
  }

  // convert complex number from x_centre, and y_centre to x and y coordinates
  const centre_pixel_y = height - Math.floor(((y_centre - ymin) / (ymax - ymin)) * height);
  const centre_pixel_x = Math.floor(((x_centre - xmin) / (xmax - xmin)) * width);
  for (let y = 0; y < height; y++) {
    for (let x = 0; x < width; x++) {
      const dx = x - centre_pixel_x;
      const dy = y - centre_pixel_y;
      if (Math.sqrt(dx*dx + dy*dy) < 5) {
        const idx = (y * width + x) * 4;
        image.data[idx] = 255;      // Red
        image.data[idx + 1] = 0;    // Green
        image.data[idx + 2] = 0;    // Blue
        image.data[idx + 3] = 255;  // Alpha
      }
    }
  }




  ctx.putImageData(image, 0, 0);
  return canvas;
}

// Calculate period at the center point
function iterate(z, c) {
  return {
    re: z.re*z.re - z.im*z.im + c.re,
    im: 2*z.re*z.im + c.im
  };
}

// magnitude squared
function mag2(z) {
  return z.re*z.re + z.im*z.im;
}

// round to 2dp
function round2(z) {
  return {
    re: Math.round(z.re * 100) / 100,
    im: Math.round(z.im * 100) / 100
  };
}

// function to determine the orbit behaviour
function orbitPeriod(c, warmup = 500, sampleCount = 150, escapeRadius = 4) {

  let z = { re: 0, im: 0 };

  // --- Warm-up phase ---
  for (let i = 0; i < warmup; i++) {
    z = iterate(z, c);
    if (mag2(z) > escapeRadius) {
      return { status: "escapes", message: "Not in Mandelbrot set" };
    }
  }

  // --- Sampling phase (bounded orbit) ---
  const values = [];

  for (let i = 0; i < sampleCount; i++) {
    z = iterate(z, c);
    if (mag2(z) > escapeRadius) {
      return { status: "escapes", message: "Not in Mandelbrot set" };
    }
    const r = round2(z);
    values.push(`${r.re},${r.im}`); // store as string so Set works nicely
  }

  // remove duplicates
  const unique = [...new Set(values)];

  // --- Determine behaviour ---
  const period = unique.length;

  if (period === 1) {
    return { status: "periodic", period: 1, message: "Fixed point (period 1)" };
  }
  if (period === 2) {
    return { status: "periodic", period: 2, message: "Period-2 cycle" };
  }

  if (period < 32) {
    return { status: "periodic", period, message: `Period-${period} cycle` };
  }

  // Many unique values → chaotic / non-repeating
  return { status: "chaos", message: "Chaotic orbit" };
}

period = orbitPeriod({ re: x_centre, im: y_centre });
period.status + " - " + period.message + ` (Period: ${period.period || 'N/A'})`;

"Position: " + x_centre + " + " + y_centre + "i";

(a)

(b)

(c)

(d)

(e)

(f)

(g)

(h)

(i)

(j)

(k)

(l)

Figure 4: Explore the Mandelbrot set by clicking on the plot to see the orbit behaviour at that point.

Figure 4 is a visualisation of the orbits of the points in the Mandelbrot set, clicking on different points in the set updates the label underneath to tell you the period of that point, as well as the position of the point in the complex plane. It can also tell you if the point is in chaos, and does not settle into a periodic cycle or a fixed point. You might notice something about the components of the main bulb, and that they all correspond to points that settle into a periodic cycle.

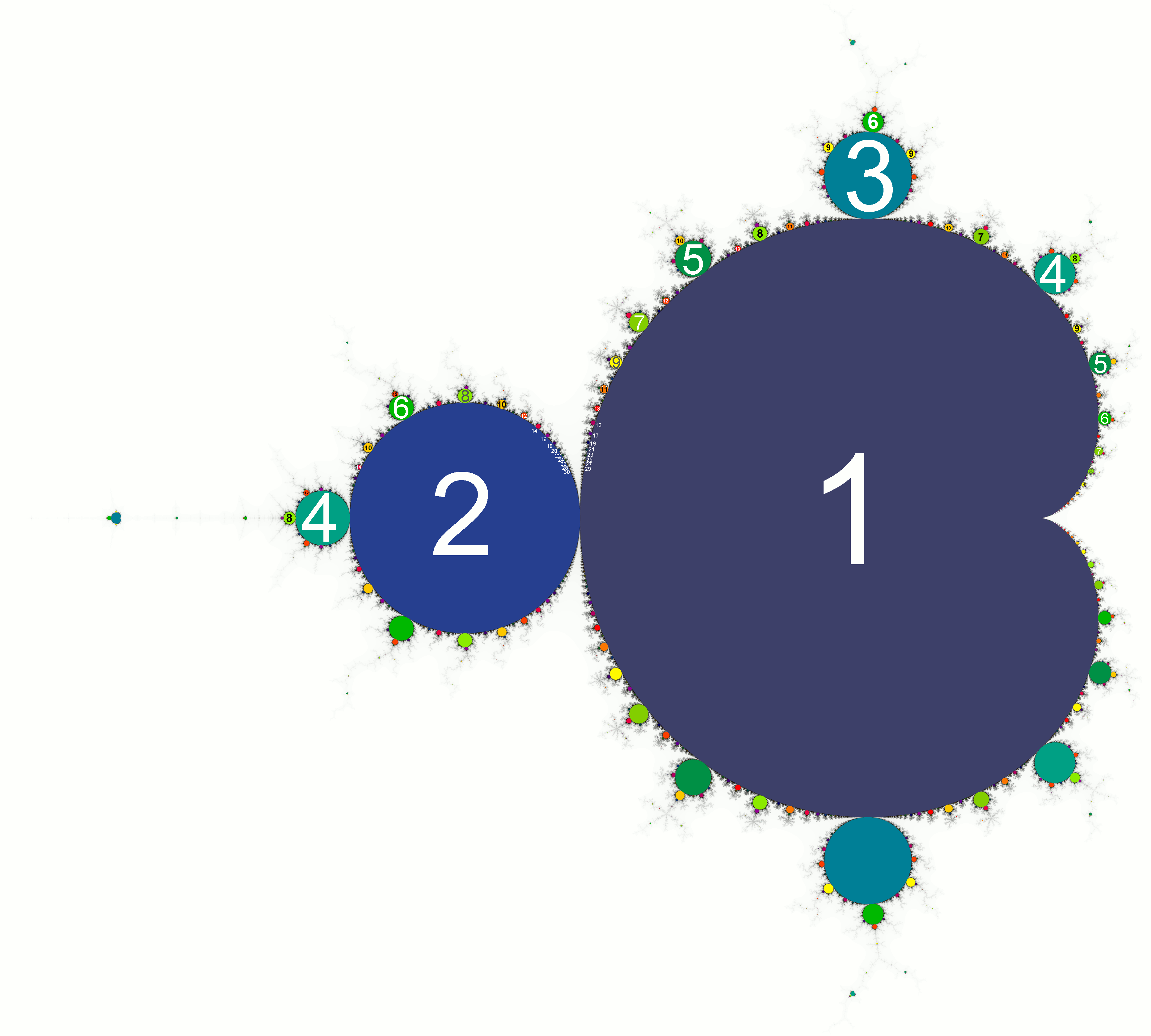

Figure 5: An image showcasing the periodicities of the mandelbrot set²

See Figure 5 for a coloured visualisation of the different periodicities in the Mandelbrot set.

3 The fibonnaci sequence and the Mandelbrot set

It may not seem likely, but the fibonacci sequence actually has a deep connection to the Mandelbrot set. The Fibonacci sequence is defined as follows: \[ \begin{aligned} F(0) = 0 \\ F(1) = 1 \\ F(n) = F(n-1) + F(n-2) \text{ for } n \geq 2 \end{aligned} \]

The first few numbers in the sequence are:

\[ \begin{aligned} 0, 1, 1, 2, 3, 5, 8, 13, 21, 34, 55, 89, 144, 233, 377, 610, 987, 1597, 2584, 4181, 6765, \ldots \end{aligned} \]

viewof zoomed = {
  const xmin = -0.75, xmax = 0.1;
  const ymin = -1, ymax = 0;
  const pixelPerUnitWidth = 600;
  const pixelPerUnitHeight = 600;
  const maxIter = 50;

  const width = Math.floor((xmax - xmin) * pixelPerUnitWidth);
  const height = Math.floor((ymax - ymin) * pixelPerUnitHeight);

  const canvas = DOM.canvas(width, height);
  const ctx = canvas.getContext("2d");
  const image = ctx.createImageData(width, height);

  canvas.addEventListener("click", (event) => {
    const rect = canvas.getBoundingClientRect();
    const x = event.clientX - rect.left;
    const y = event.clientY - rect.top;

    const cr = xmin + (x / width) * (xmax - xmin);
    const ci = -ymin - (y / height) * (ymax - ymin);
    mutable x_centre = cr;
    mutable y_centre = ci;
    mutable centre_x_pixel = x;
    mutable centre_y_pixel = y;
  });

  // compute mandelbrot
  for (let y = 0; y < height; y++) {
    const ci = ymin + (y / height) * (ymax - ymin);

    for (let x = 0; x < width; x++) {
      const cr = xmin + (x / width) * (xmax - xmin);

      let zr = 0, zi = 0;
      let iter = 0;

      while (zr*zr + zi*zi <= 4 && iter < maxIter) {
        const zrNew = zr*zr - zi*zi + cr;
        zi = 2 * zr * zi + ci;
        zr = zrNew;
        iter++;
      }

      const idx = (y * width + x) * 4;
      const v = iter === maxIter ? 0 : 255;

      image.data[idx] = v;
      image.data[idx + 1] = v;
      image.data[idx + 2] = v;
      image.data[idx + 3] = 255;
    }
  }


  for (let y = 0; y < height; y++) {
    for (let x = 0; x < width; x++) {
      const dx = x - centre_x_pixel;
      const dy = y - centre_y_pixel;
      if (Math.sqrt(dx*dx + dy*dy) < 5) {
        const idx = (y * width + x) * 4;
        image.data[idx] = 255;      // Red
        image.data[idx + 1] = 0;    // Green
        image.data[idx + 2] = 0;    // Blue
        image.data[idx + 3] = 255;  // Alpha
      }
    }
  }

  ctx.putImageData(image, 0, 0);
  return canvas;

}
period.status + " - " + period.message + ` (Period: ${period.period || 'N/A'})`;

(a)

(b)

Figure 6: Mandelbrot set zoomed in on the components related to the fibonnaci sequence.

Clicking on the bulbs in Figure 6 that are attached to the main cardioid reveals points whose orbits have periods that correspond to numbers in the Fibonacci sequence. This is because if you take any two bulbs and sum their periods, you get the period of the largest bulb between them. For example, click on the bulb at the very top, which has a period of 3, and the largest bulb on the left of the cardioid which has a period of 2. The largest bulb between them has a period of 5, which is the sum of 3 and 2. This pattern continues throughout the bulbs attached to the main cardioid, reflecting the Fibonacci sequence.

Use Figure 4 if you cannot see which bulb corresponds to which period.

The reasoning for why this occurs is a bit more complex and involves some visual thinking. It is true that for every rational fraction \(\frac{a}{b}, a, b \in \mathbb{Z}^+ \text{ and } a<b\), there exists a bulb in the Mandelbrot set with period \(b\). It just so happens that the bulb periods corresponding to that fraction, are placed \(\frac{a}{b}\) of the way along the boundary of the main cardioid if it were stretched into a circle. So this means that \(\frac{1}{2}\) of the way around the main cardioid there exists a bulb with period 2, which is true, and \(\frac{1}{3}\) and \(\frac{2}{3}\) of the way around there exists a bulb with period 3, and so on.

Following this sequence, to find the largest bulb between two bulbs of periods p and q, you look for the fraction with the lowest denominator between the two fractions representing those bulbs, which is also the mediant of the two fractions representing their positions along the cardioid. The mediant (denoted by \(\oplus\)) of two fractions \(\frac{a}{b}\) and \(\frac{c}{d}\) is given by: \[ \begin{aligned} \frac{a}{b} \oplus \frac{c}{d} = \frac{a+c}{b+d} \end{aligned} \]

Now let’s return to our bulbs with periods 2 and 3, which are located at \(\frac{1}{2}\) and \(\frac{1}{3}\) respectively. The mediant of these two fractions is: \[ \begin{aligned} \frac{1}{2} \oplus \frac{1}{3} = \frac{1+1}{2+3} = \frac{2}{5} \end{aligned} \] This means that the bulb with period 5 is located \(\frac{2}{5}\) of the way around the cardioid, which is indeed between the bulbs with periods 2 and 3. Continuing this process with bulbs of periods 3 and 5: \[ \begin{aligned} \frac{1}{3} \oplus \frac{2}{5} = \frac{1+2}{3+5} = \frac{3}{8} \end{aligned} \] This gives us the bulb with period 8, which is located \(\frac{3}{8}\) of the way around the cardioid, again between the bulbs with periods 3 and 5. Repeating this process infinitely, we find the denominators follow the fibonacci sequence, and thus the periods of the bulbs between them also follow the fibonacci sequence! In case you were wondering, there is also a bulb with period 5 located at \(\frac{1}{5} \text{ and } \frac{3}{5} \text{ and } \frac{4}{5}\) around the cardioid if it were stretched in a circle, but they are not part of the sequence we are discussing.

References

Wikipedia contributors. n.d. “Mandelbrot Set.” https://en.wikipedia.org/wiki/Mandelbrot_set.

Footnotes

1. Magnitude of a complex number \(z=a+bi\) is defined as \(\sqrt{a^2+b^2}\)
